Mathematical functions and operations

PreviousEnvironment variablesNextFormatting of messages

Last updated 11 months ago

Was this helpful?

Several tasks such as Aggregator, Condition, and Notification are empowered by an extended mathematical editor that supports a powerful set of mathematical functions and operations.

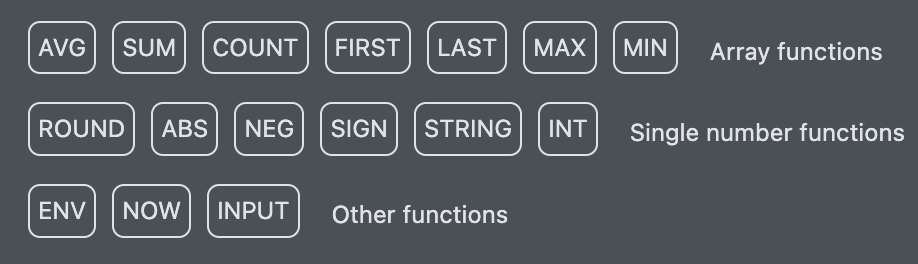

Mathematical functions

Most probably you are already familiar with them and used these ones in SQL databases, Microsoft Excel, or Google Spreadsheets.

Array functions

Formula
Meaning
Example

AVG(field_name)

Average value in the input data set

AVG(amount)

SUM(field_name)

A sum of values in the input data set

SUM(amount)

COUNT()

Number of rows in the input data set

FIRST(field_name)

First value in the input data set

LAST(field_name)

Last value in the input data set

MAX(field_name)

Max value in the input data set

MAX(amount)

MIN(field_name)

Min value in the input data set

MIN(amount)

Single number functions

Formula
Meaning
Example

ROUND(field_name, precision, "floor|ceil")

Round a number up or down with a certain precision

ROUND(tax, 2, "floor")

ABS(field_name)

The absolute value of a number

NEG(field_name)

Inverts the sign of a number. From "-" to "+" and other way around

SIGN(field_name)

Returns:

-1 if d <  0
 0 if d == 0
+1 if d >  0

STRING(field_name)

Converts number to string

INT(field_name)

Returns an integer part of a decimal number

Other functions

Formula
Meaning
Example

ENV()

Use environment variable in a format of ENV_variable_name

ENV_REVENUE_THRESHOLD

NOW()

Current timestamp

INPUT()

The entire input data set as JSON

Metric functions

Also, there's an additional set of functions available for Metrics only:

Formula
Meaning
Example

METRIC_AVG("period", duration)

This function returns an average value of this metric within a selected period of time

METRIC_AVG("day", 5) or METRIC_AVG("month", 3) etc.

METRIC_QUANTILE(level, "period", duration)

This function returns a metric quantile within a selected period of time

METRIC_QUANTILE(0.25, "day", 7)

METRIC_MEDIAN("period", duration)

This function returns a median metric value within a selected period of time.

Alias for METRIC_QUANTILE(0.5, "period", duration)

METRIC_MEDIAN("day", 5) or METRIC_MEDIAN("month", 3) etc.

Arithmetical and logical operations

The following list is supported:

Arithmetic

+ - / * % **

Comparison

== === != !== > < >= <= >== <==

Boolean operators

|| && !

Bitmasking

| & ^ << >>

Regular expression comparison

The following two operations are supported for searching in strings with regular expressions

=~ // means a regular expression match is found !~ // means a regular expression match is not found

For example, the following string placed in the Condition or Aggregator will return true

"Mountaineering is the best sport in the world. Or engineering?" =~ "[(Engin|Mountain)]eering\\s"

Supported syntax for regular expressions: https://pkg.go.dev/regexp/syntax.

Formatting of dates

Comparison operations can also be used for comparing dates. The following formats are supported:

  • time.UnixDate,

  • time.RubyDate,

  • time.Kitchen,

  • time.RFC3339,

  • time.RFC3339Nano,

  • "2006-01-02", // RFC 3339

  • "2006-01-02 15:04", // RFC 3339 with minutes

  • "2006-01-02 15:04:05", // RFC 3339 with seconds

  • "2006-01-02 15:04:05-07:00", // RFC 3339 with seconds and timezone

  • "2006-01-02T15Z", // ISO8601 with hour without UTC offset

  • "2006-01-02T15:04Z", // ISO8601 with minutes without UTC offset

  • "2006-01-02T15Z0700", // ISO8601 with hour

  • "2006-01-02T15:04:05Z", // ISO8601 with seconds without UTC offset

  • "2006-01-02T15:04Z0700", // ISO8601 with minutes

  • "2006-01-02T15:04:05Z0700", // ISO8601 with seconds

  • "2006-01-02T15:04:05.999999999Z", // ISO8601 with nanoseconds without UTC offset

  • "2006-01-02T15:04:05.999999999Z0700", // ISO8601 with nanoseconds
